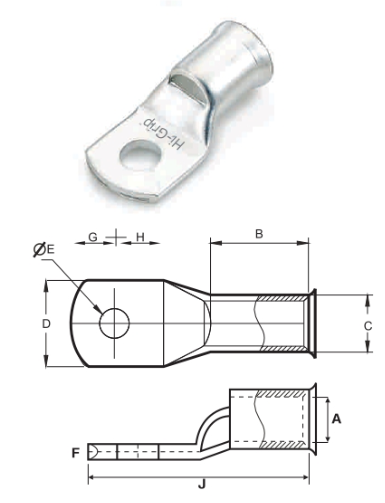

Copper Cable Lugs: Bell Mouth

Material : Electrolytic High Conductivity Copper
Finish : Electro Tinned
Features : With & Without Inspection Hole

Product Ref. Size mm^2 Stud Hole E Dimensions mm
A C D L H B J
PABT 150-8 150 8.4 16.5 21.2 30 16 16 27 70
PABT 150-10 10.5 16.5 21.2 30 16 16 27 70
PABT 150-12 13 16.5 21.2 30 16 16 27 70
PABT 150-14 14.7 16.5 21.2 30 16 16 27 70
PABT 150-16 17 16.5 21.2 30 16 16 27 70
PABT 150-20 21 16.5 21.2 30 16 16 27 73
PABT 185-10 185 10.5 18.5 23.5 34 17 19 32 80
PABT 185-12 13 18.5 23.5 34 17 19 32 80
PABT 185-14 14.7 18.5 23.5 34 17 19 32 80
PABT 185-16 17 18.5 23.5 34 17 19 32 80
PABT 185-20 21 18.5 23.5 34 17 19 32 80
PABT 240-10 240 10.5 21 26.5 38 20 21 39 94
PABT 240-12 13 21 26.5 38 20 21 39 94
PABT 240-14 240 14.5 21 26.5 38 20 21 39 94
PABT 240-16 17 21 26.5 38 20 21 39 94
PABT 240-20 21 21 26.5 38 20 21 39 94
service-image

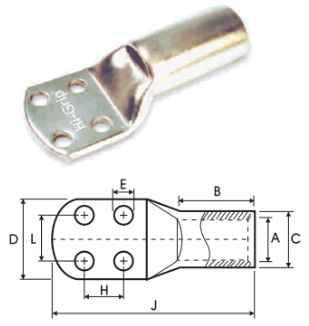

Copper Cable Lugs : Four Hole

Material : Electrolytic High Conductivity Copper
Finish : Electro Tinned
Features : With & Without Inspection Hole

Product Ref. Size mm^2 Stud Hole E Dimensions mm
A C D G H B J
PAT 4004E10 400 10.5 28.5 36.5 52.5 44 35 25 114
PAT 4004E12 12.5 28.5 36.5 52.5 44 35 25 114
PAT 5004E10 500 10.5 30 39 56 48 35 25 124
PAT 5004E12 12.5 30 39 56 48 35 25 124
PAT 6004E10 630 10.5 35 45 65 56 35 25 144
PAT 6004E12 12.5 35 45 65 56 35 25 144
PAT 8004E10 800 10.5 39 50.6 72 78 35 25 170
PAT 8004E12 12.5 39 50.6 72 78 35 25 170
PAT 10004E10 1000 10.5 43 56.2 78.5 90 35 25 200
PAT 10004E12 12.5 43 56.2 78.5 90 35 25 200
service-image

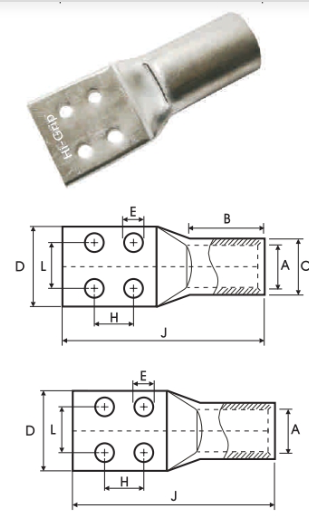

Copper Cable Lugs : Four Hole(Eco-Series)

Material : Electrolytic High Conductivity Copper
Finish : Electro Tinned
Features : With & Without Inspection Hole

Product Ref. Size mm^2 Dimensions mm
E A D L H J
PAT e 6304E10 630 10.5 35 61 35 25 144
PAT e 8004E10 800 10.5 39 67 35 25 170

(All Dimensions in mm)

*Note : All type of products can be developed and supplied exactly as per customer specifications.
